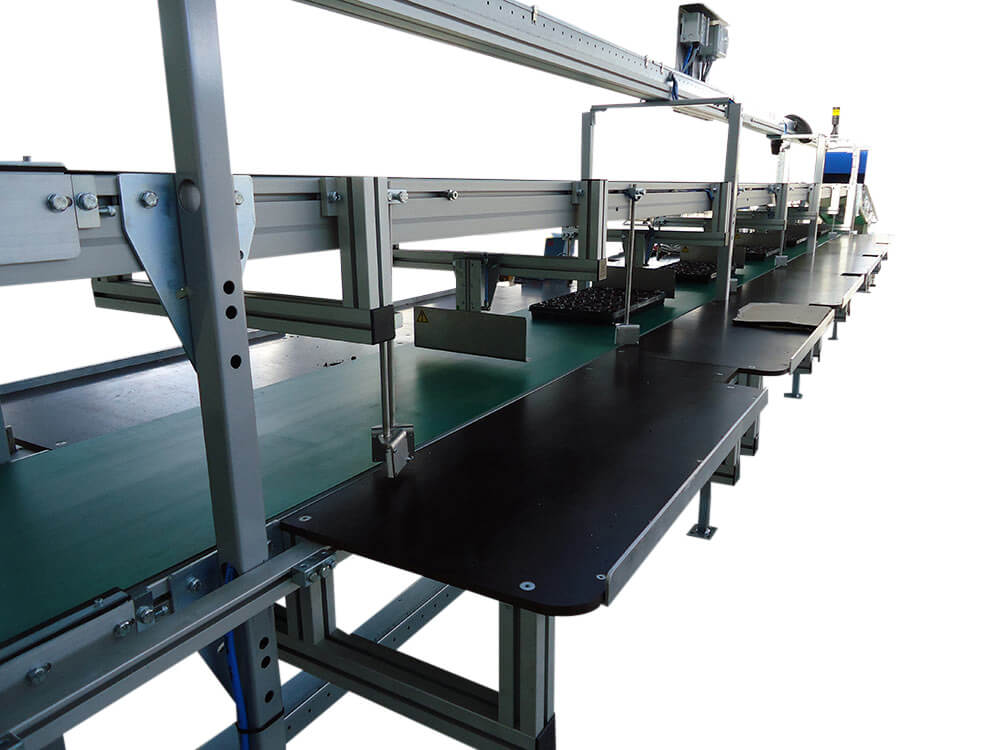

Viscon Transplanting Line

Manual Transplanting Line.

The Manual transplanting line can be equipped with up to forty workstations, twenty on each side. Each working table provides space for one personnel member and is adjustable in angle for improved ergonomics. The manual transplanting line includes the possibility of sticking a label with a QR code in the tray.

• Ergonomic design.
• Easy to operate.
• Track and trace available.

The Manual Transplanting Line can be used with up to 40 workers. The working line can be equipped with twenty stop sets with two opposite employees using each station. When a tray is removed from the main source, a new tray will come to that position, so a tray is always available to achieve maximum plant capacity.

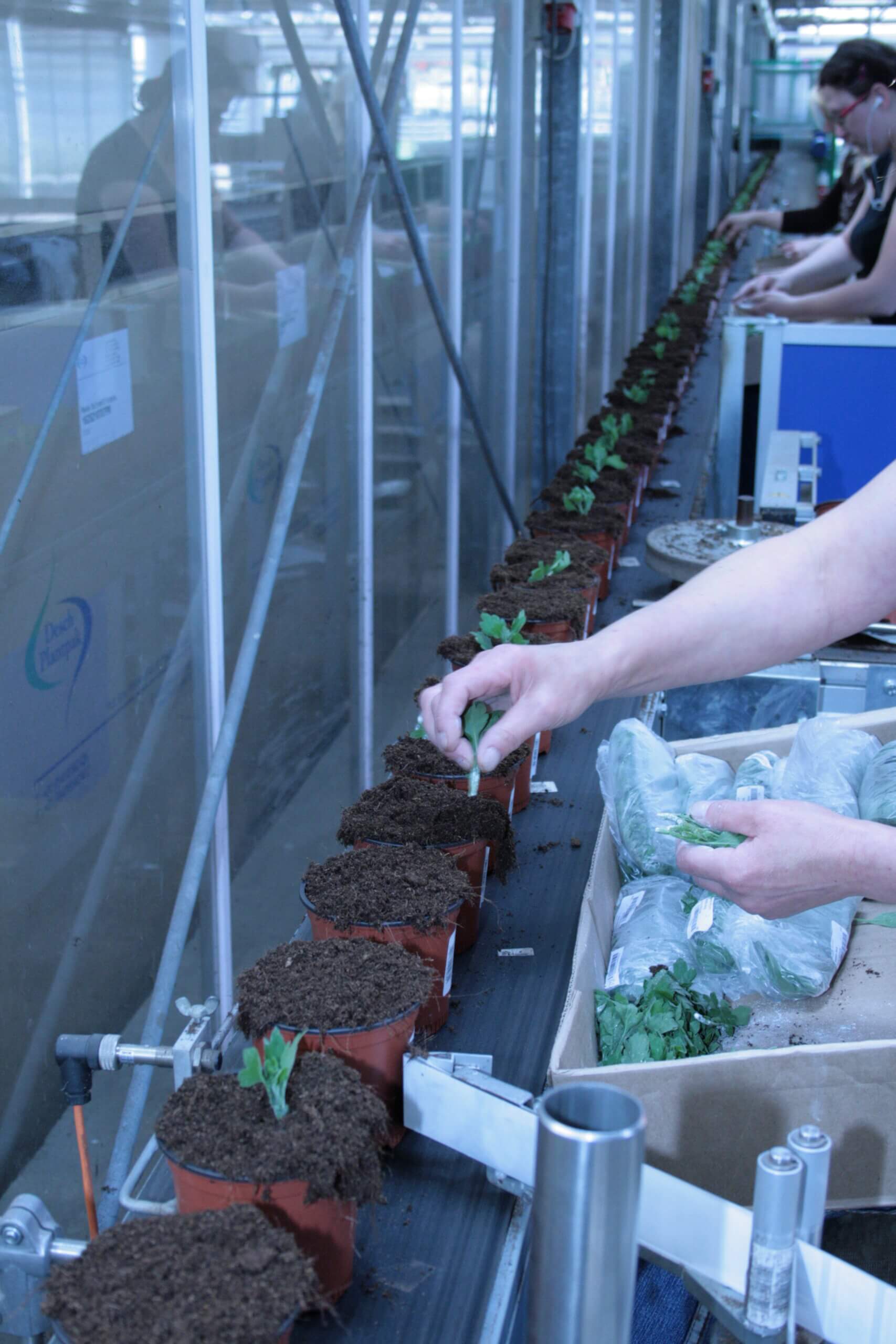

After planting, the employee can stick a label with a QR code in the tray. This label shows specific information such as plant type, date, employee, etc. This provides management with information such as daily production numbers.

When the tray is finished, the tray is placed on the bottom belt and dispatched. After this, the tray is automatically scanned and all information from the QR code is saved. After scanning, the tray passes a watering unit and is placed on a trolley to be transported to the greenhouse.
