Toro Drip Irrigation Xpando Take Off Fittings - Adapters

An improved method of connecting low pressure irrigation tubes and driplines to polyethylene tubes and PVC mainlines.

Features:

• Easy to install.

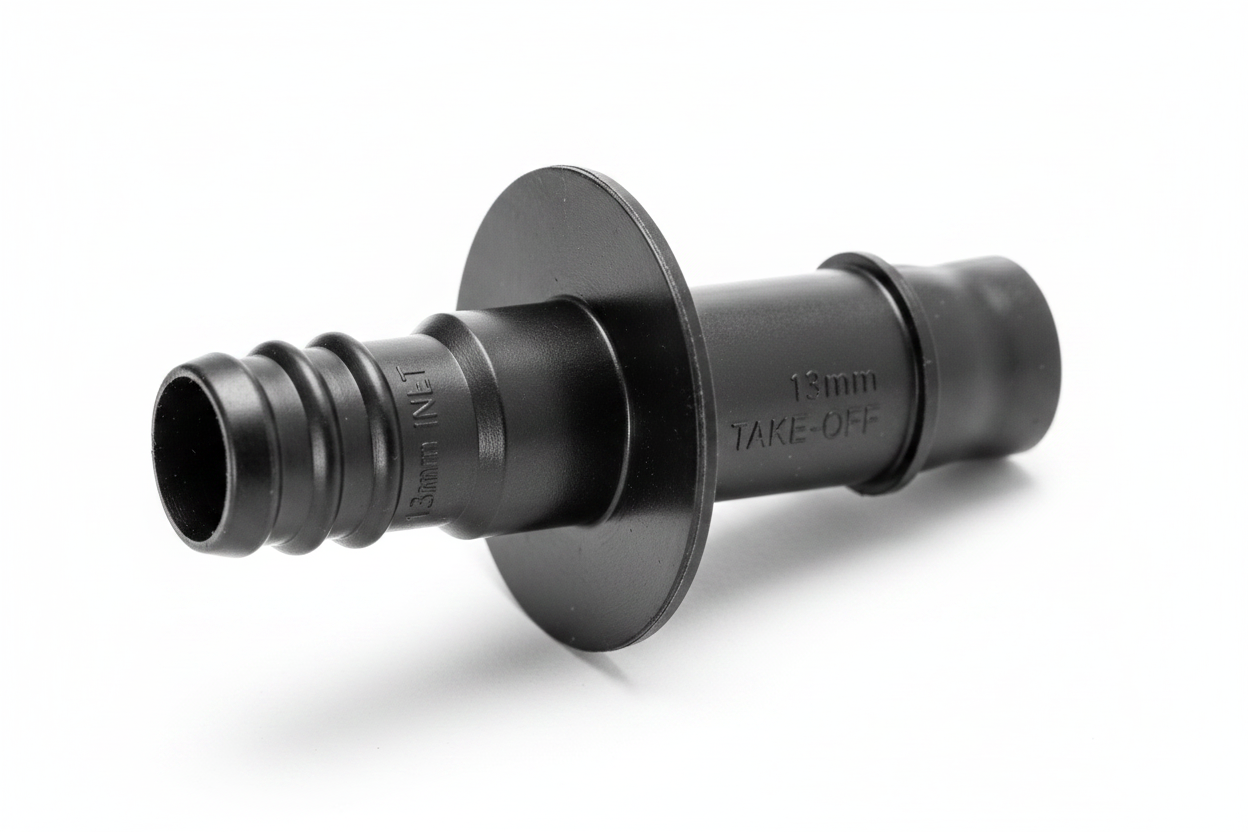

• Innovative acetal Xpando Take Off Adapter with collapsible barb prevents pull-out and reduces grommet damage during the installation process.

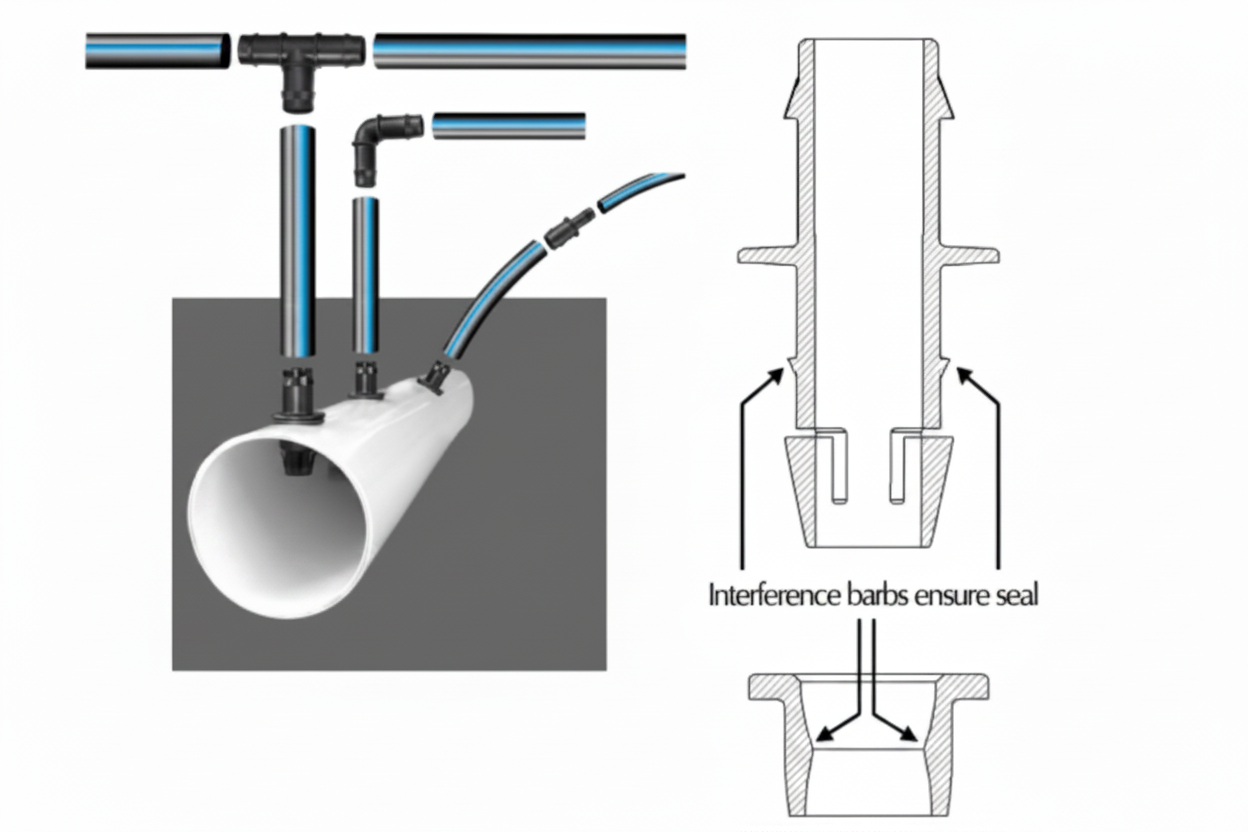

• Top Hat thermoplastic rubber grommets with internal step combine with the Xpando interference barb to hold the take-off firmly in place.
• UV stabilized materials for long life.
• Compatible with standard polyethylene drip irrigation tubing.

Installation:

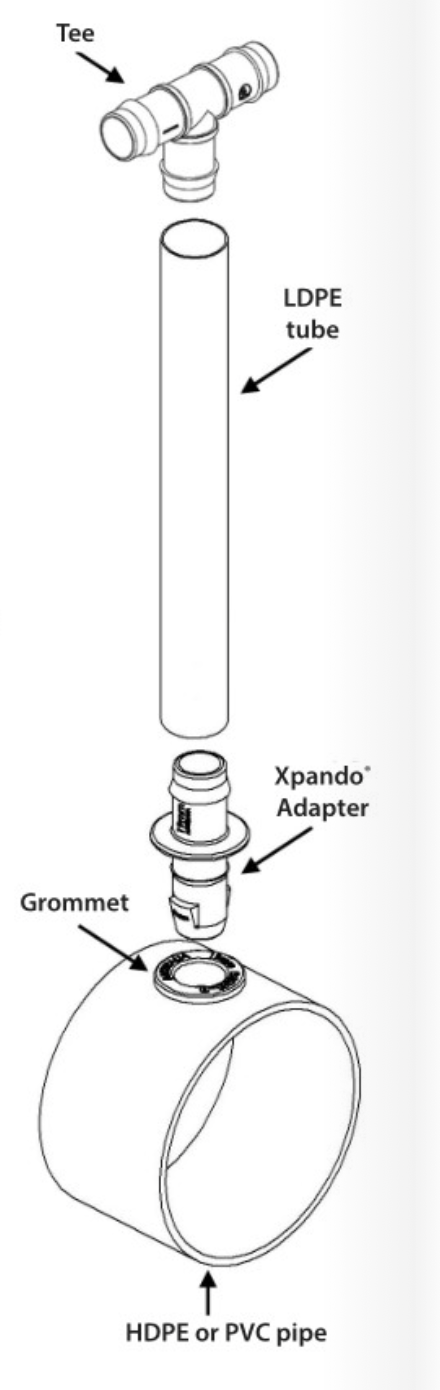

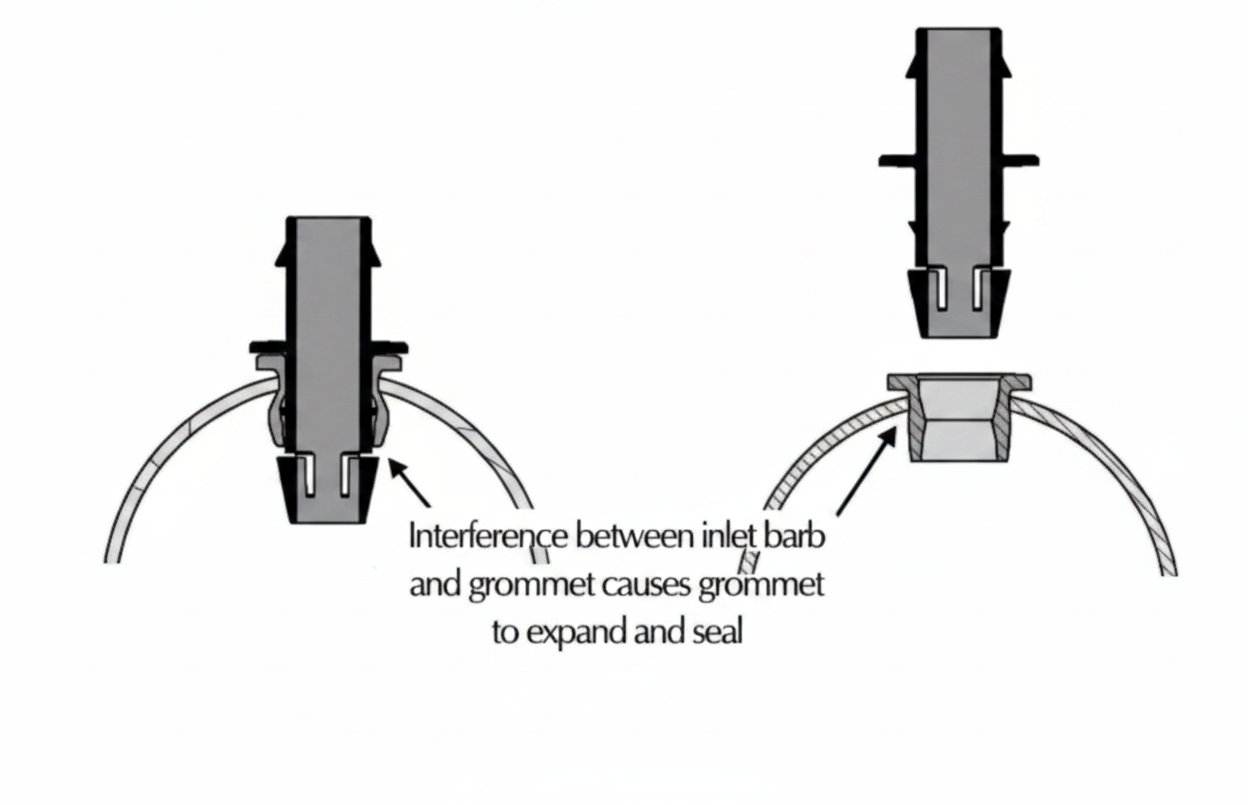

• The Xpando Take Off is installed by first inserting the grommet into PVC or HDPE pipe, then inserting the collapsing barb into the Grommet. As the barb enters, it collapses inward, eliminating grommet damage.
• Drill hole in PVC or HDPE pipe to the appropriate size as per the installation specification table.
  *Hole size and drill bit size are the same, use forstner or step drill bit.
• Clean burrs from edge of hole before inserting the Grommet.
• Push Xpando adapter into grommet ensuring flange finishes flush with top of the grommet.
• Install further connections to adapter using appropriately sized LDPE tube.
