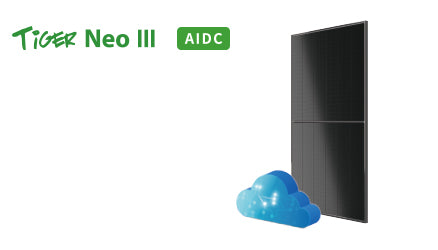

Jinko Solar Tiger Neo III 650W-680W Bifacial AIDC Photovoltaic Module

85±5% Bifaciality  AIDC

650-680W N-Type 66 Quarter Cell Bifacial Module with Dual Glass

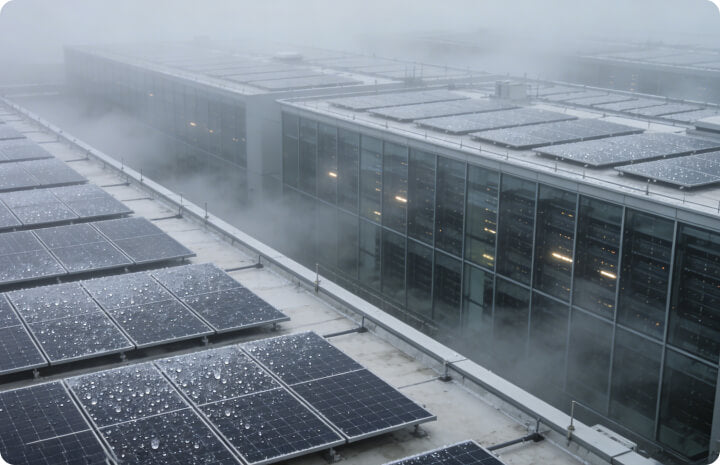

Solar panel for artificial intelligence data centres.

High efficiency. High power. Minimized levelized cost of electricity.
Combines forward looking technological extensibility with higher power generation under the same floor area, effectively reducing the levelized cost of electricity LCOE throughout the entire life cycle.

Front side efficiency: ≥24.8%
Maximum power: ≥670W

Efficiency and Reliability Dual Drive

TOPCon Cells

Neo 3.0 employs 27% efficient, next-generation TOPCon cells, delivering 680W output at 25.17% module efficiency.

Efficient Bifacial Power Generation

• The mainstream TOPCon bifacial rate is 80%, while the Tiger Neo 3.0 bifacial rate is 85±5%, significantly higher than the 70~75% BC bifacial rate.
• Within the same scenario, the higher bifaciality yields an integrated power output approximately 1.34%~1.94% above that of BC counterparts-equating to an additional 9~13W for 670W modules.


  *The simplified formula for current bifacial module testing methods is based on BNPI test conditions.

Excellent Low Light Performance

In low irradiance conditions (cloudy, or dawn/ dusk), TOPCon modules demonstrate superior performance, with power generation increasing by 2.26-2.49%.
*Calculated per IEC 61215-2:2021 test method.

Optimized Temperature Coefficient

By integrating MAX technology and an advanced passivation design, the temperature coefficient is optimized to -0.26%/°C, delivering additional energy yield for high temperature installations.

UV Resistance Performance

TOPCon modules demonstrate superior performance in UVID testing. Particularly after UV testing, TOPCon modules exhibit better UV resistance degradation compared to other technologies.

Universal Application Scenarios

With its "three highs and three lows" - high power, high efficiency, high bifaciality, low temperature coefficient, low light performance, and low degradation - Neo 3.0 is engineered for universal deployment. Backed by the proven quality of more than 200GW of Jinko TOPCon technology, it delivers proven reliability, superior performance, and assured investment value.
