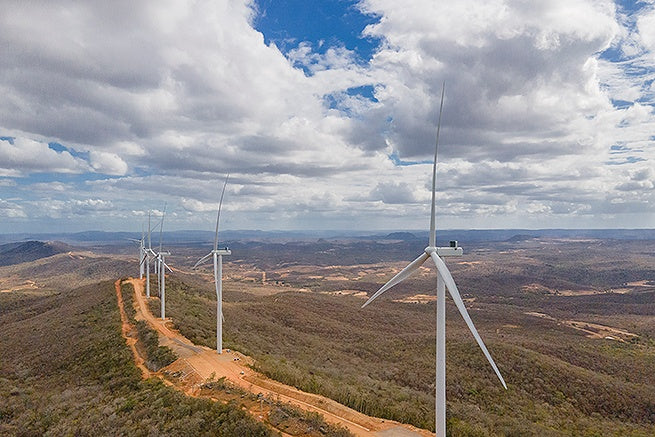

Vestas V150-4.5 MW™ Onshore Wind Turbine
Vestas V150-4.5 MW™ Onshore Wind Turbine
The V150-4.5 MW™ is designed for low wind sites, and is one of the industry’s highest producing onshore low wind turbines.
Building on the commercial success of the V150-4.2 MW™ for low wind conditions, the V150-4.5 MW™ captures higher park Annual Energy Production with an expanded global applicability.
Where permits allow, the higher rating variant delivers an over 3 percent increase in annual energy production compared to the V150-4.2 MW™, while maintaining the same application space and noise level.
Available options
- 4.5 MW Power Mode
- Condition Monitoring System
- Service Personnel Lift
- Vestas Anti-Icing System™
- Vestas Ice Detection
- Fire Suppression
- Vestas Shadow Flicker Control System
- Vestas Bat Protection System
- Aviation Lights
- Aviation Markings on the Blades
POWER REGULATION OPERATIONAL DATA
Pitch regulated with variable speed
Rated power:
4,500kW
Cut-in wind speed: 3m/s
Cut-out wind speed: 24.5m/s
Re cut-in wind speed: 22.5m/s
Wind class:
IEC S
Standard operating temperature range: from -30°C* to +45°C with de-rating above 23°C
SOUND POWER
Maximum: 105.0dB(A) Sound Optimized modes dependent on site and country
ROTOR
Rotor diameter: 150m
Swept area: 17,671m2
Aerodynamic brake: full blade feathering with 3 pitch cylinders
NACELLE DIMENSIONS
Height for transport: 3.5m
Height installed (incl. CoolerTop®): 8.4m
Length: 12.96m
Width: 3.98m
ELECTRICAL
Frequency: 50/60 Hz
Converter: full scale
GEARBOX
Type: two planetary stages and one helical stage
TOWER
Hub heights:
90 m (IEC IIIB) and 105 m (IEC IIIB)
HUB DIMENSIONS
Max. transport height: 3.5m
Max. transport width: 3.7m
Max. transport length: 5.5m
BLADE DIMENSIONS
Length: 73.7m
Max. chord: 4.2m
Max. weight per unit for transportation: 70 metric tonnes
SUSTAINABILITY METRICS
Carbon Footprint: 5.6g CO2e/kWh
Return on energy break-even: 5.9 months
Lifetime return on energy: 41 times
Recyclability rate: 82.8%
Configuration: 105m hub height and wind class IECIIIB. Depending on site-specific conditions. Metrics are based on an externally reviewed Life Cycle Assessment available on vestas.com
