RainBird Flow Sensing 12 Station Base Unit Controller Expandable to 48 Stations

RainBird Flow Sensing 12 Station Base Unit Controller Expandable to 48 Stations

$2,595.00 CAD
$2,595.00 CAD
Sleva Vyprodáno
Poštovné se vypočítá na pokladně.

Modular timers are powerful, easy-to-program irrigation controllers for commercial and larger residential applications.

Water Management

  • Station Count: 12 Station Base Unit, Expandable Up to 48 Stations. (12 Station Expansion Modules)
  • FloZones (Master Valve + Flow Sensor.): 1 (One)
    Booster Pump:V. 2/P for Station Level Booster Pump Control
  • Programs: 40
  • Simulstations: 5
  • Start Times: 10 Per Program
  • Flow Management: Yes (Factory Installed PRO Smart Module)

Controller Features

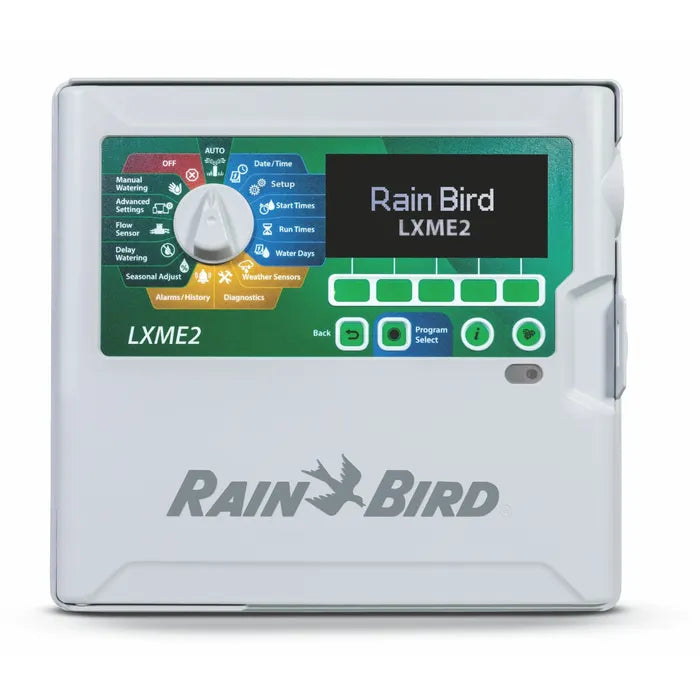

  • Large backlit LCD display with easy to navigate softkey user interface
  • Hot-swappable modules, no need to power down the controller to add/remove modules
  • MV1 – Normally closed or Normally open Master valve/pump start circuit
  • Master valve delay and inter-station delay
  • 6 user-selectable languages
  • Non-Volatile (100- year) program memory
  • Standard 10kV surge protection
  • The front panel is removable and programmable under battery power
Model ESPLXME2P
Zones/Stations 12-48 expandable
Indoor/Outdoor Indoor/Outdoor
Controller Type Modular/Expandable
Dimensions

Width: 14.32 in. (36,4 cm) Height:12.69 in. (32,2 cm) Depth: 5.50 in. (14,0 cm)
Features Flow Sensing
Electrical Specifications
  • Input required: 120 VAC ± 10%, 60Hz; 230 VAC +10% -6%, 50 Hz.
  • Output: 26.5 VAC 1.9A
  • Power back-up: Lithium coin-cell battery maintains time and date while nonvolatile memory maintains the schedule
  • Multi-valve capacity: Maximum five 24 VAC, 7 VA solenoid valves simultaneous operation including the master valve, maximum two solenoid valves per station module
