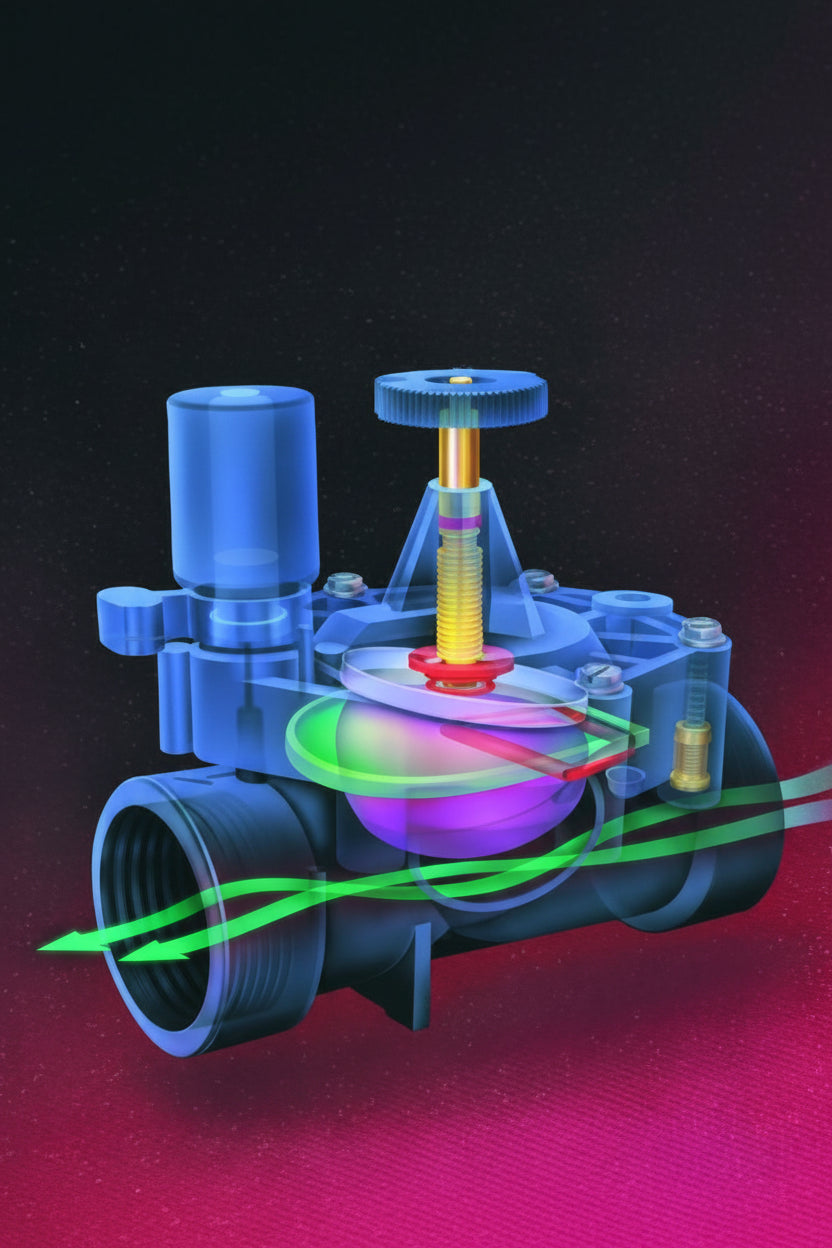

Toro Irrigation 700 Series Ultra Flow Valves

Valve for low flow applications found in nursery and greenhouse drip irrigation. Straight through flow path provides low pressure loss and superior regulating capabilities.

Available in ¾", 1", 1 ½" and 2" (1.9 cm, 2.5 cm, 3.8 cm, and 5 cm).
Working pressure range from 10 psi to 150 psi (0.7 bar to 10.3 bar).

Features

• Unique straight through flow path
  Provides extremely low friction loss.
• Slow closing design
  Reduces water hammer and resulting stress on the system.
• Internal and external bleed (flush mode)
  Manual operation.
• Tough glass reinforced nylon, stainless steel and brass
  Provides durability and long life.
• High and low flow operation
  Ensures consistent performance in a variety of applications.
• Self flushing, 150 mesh, stainless steel filter screen on 1, 1½ and 2 inch models
  Provides consistent operation.

Added Features

• Manual internal bleed.
• Wide flow range.

• Flow control allows precise flow adjustment and manual shutoff (not available on ¾ inch model).
• Compact, low profile design.
• Rugged nylon reinforced Buna-N diaphragm provides leak proof seal.
• Buna-N valve seat seal.
• Encapsulated injection molded solenoid with a captive hex plunger.
• Unique three way stainless steel bonnet screws with threaded brass inserts accept Phillips, flat blade and hex driver tools.

Operating Specifications

• Flow range: 0.1 gpm - 180 gpm.
  (700B-.75 and 700-1 can operate at 0.1 gpm)
• Pressure range: 10 psi - 150 psi.
  (700-2 not recommended under 20 psi)

Electrical Specifications

• Solenoid: 24 VAC.
• Inrush volt-amp: 24 VAC - 9.6 VA.
• Inrush current: 0.4 amp.
• Holding volt-amp: 24 VAC - 4.8 VA.
• Holding current: 0.2 amp.

Models

Pressure Regulation
713 Models

• Manual downstream pressure regulating valves.
• Available in 1'', 1.5'' and 2'' models ( 25 mm, 40 mm and 50 mm).
• Available in in-line and downstream sensing versions, with 20-100 or 0-30 psi (1.4-6.9 or 0-2 bar) range.

• Self modulating pressure regulator maintains constant downstream pressure within ±2 psi (0.14 bar) of pressure setting, for in valve sensing and within ±1 psi (0.07 bar) for downstream sensing.
• All flow ranges must be within recommended range indicated on pressure loss chart; minimum 15 gpm (0.9 l/s) recommended for 703 and 713 models.
• Inlet pressure must be 15 psi (1.03 bar) greater than desired outlet pressure.

Electrical Specifications

• Solenoid: 24 VAC.
• Inrush volt-amp: 24 VAC - 11.50 VA.
• Inrush current: 0.4 amp.
• Holding volt-amp: 24 VAC - 5.75 VA.
• Holding current: 0.2 amp.

Optional Accessories

• Hydraulic conversion kit. (used to convert a standard solenoid operated irrigation valve into a hydraulically operated remote valve)
• Reclaimed water kit. (recycled and reclaimed water solenoid kit used to convert standard irrigation valves for non potable or effluent water systems)
• DC Latching solenoid.
