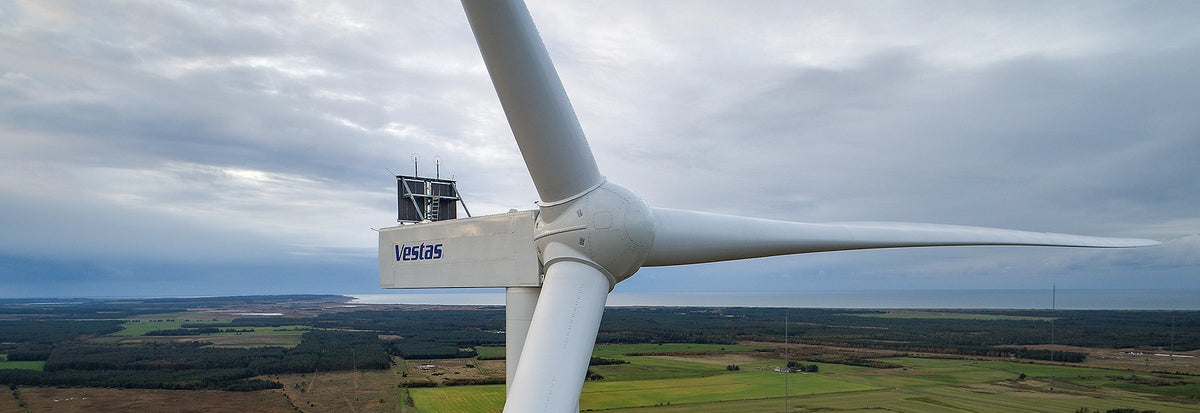

Vestas V162-6.2 MW™ Onshore Wind Turbine
Vestas V162-6.2 MW™ Onshore Wind Turbine
The V162-6.2 MW™ is designed for low to medium wind sites and has extensive application in high wind speeds.
As one of the first EnVentus turbines designed, the V162-6.2 MW™ delivers excellent Annual Energy Production under low to medium average wind conditions for primarily pad-constrained markets.
Due to the large operational envelope, the V162-6.2 MW™ also has extensive applicability in high average wind speeds.
With a standard Sound Power Level of 104.8dB(A) and up to 30 percent higher energy production than the V150-4.2 MW™, the V162-6.2 MW™ establishes a new benchmark in competitiveness.
Available options
- 5.6 MW Operational Mode
- 6.0 MW Operational Mode
- 6.4 MW Operational Mode
- 6.5 MW Operational Mode
- Condition Monitoring System
- Oil Debris Monitoring System
- Service Personnel Lift
- Low Temperature Operation to -30°C
- Vestas Ice Detection™
- Vestas Anti-Icing System™
- Vestas Shadow Flicker Control System
- Aviation Lights
- Aviation Markings on the Blades
- Fire Suppression System
- Vestas Bat Protection System
- Lightning Detection System
- Power Optimised Modes
Technical specifications
POWER REGULATION OPERATIONAL DATA
Pitch regulated with variable speed
Rated power: 6,000kW
Cut-in wind speed: 3m/s
Cut-out wind speed: 25m/s
Wind class: IEC S
Standard operating temperature range: from -20°C* to +45°C
SOUND POWER
Maximum: 104.8dB(A)**
ROTOR
Rotor diameter: 162m
Swept area: 20,612m2
Aerodynamic brake: full blade feathering with 3 pitch cylinders
ELECTRICAL
Frequency: 50/60 Hz
Converter: full scale
GEARBOX
Type: two planetary stages
TOWER
Hub heights: 119 m (IEC S/DIBt S), 125 m (IEC S), 149 m (IEC S), 166 m (IEC S/DIBt S) and 169 m (DIBt S)
SUSTAINABILITY METRICS
Carbon Footprint: 6.2g CO2e/kWh
Return on energy break-even: 6.5 months
Lifetime return on energy: 37 times
Recyclability rate: 84%
Configuration: 149m hub height, Vavg=7.4m/s, k=2.22. Depending on site-specific conditions. Metrics are based on an externally reviewed Life Cycle Assessment available on vestas.com
