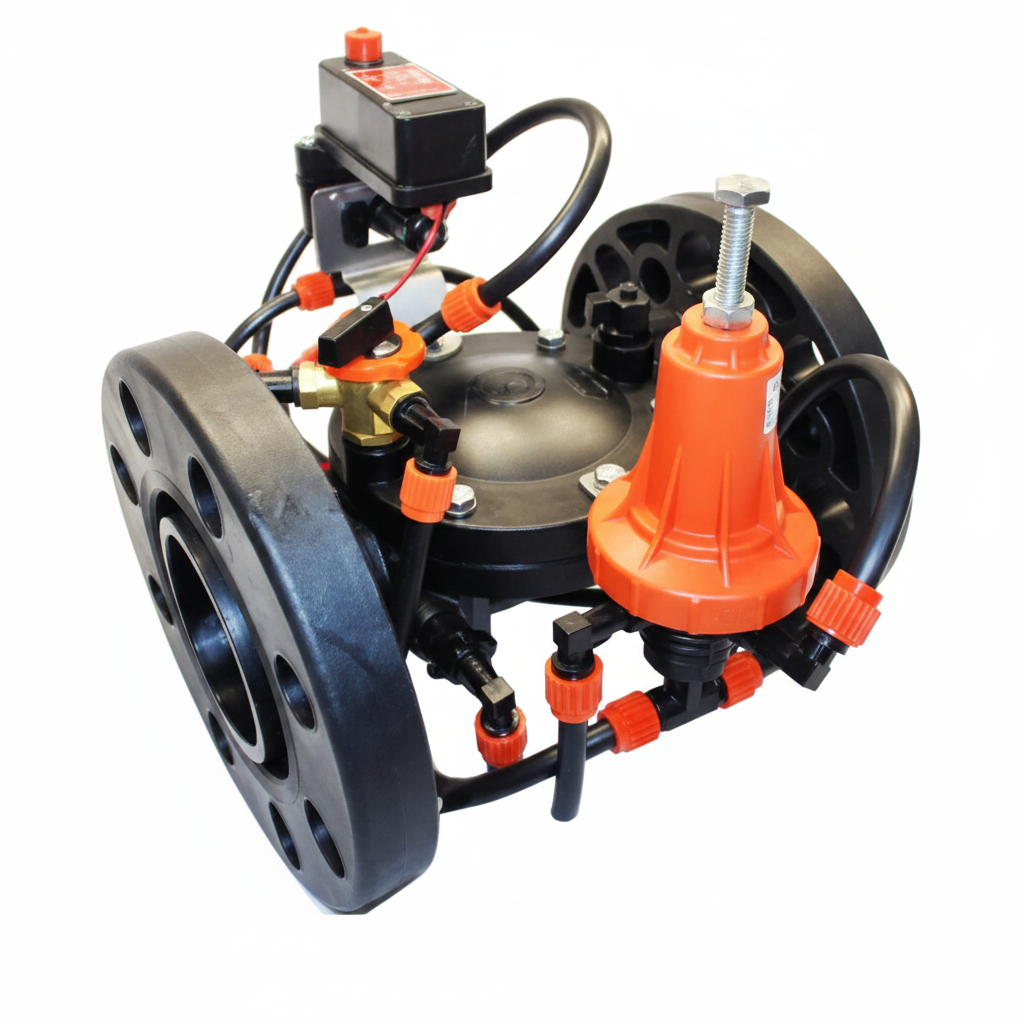

Toro Irrigation 900 Series Electric Control Valves

Control valves for agricultural irrigation with cutting edge characteristics to ensure optimum performance and high efficiency over a long life cycle.

This gives growers an efficient and reliable foundation for irrigation system control while offering designers flexible valve sizing to fit a wide range of applications. Bundled in a simple, 4-piece valve assembly that allows for easy in-field maintenance.

Available in a wide range of common options, ranging in size from 1.5” to 6” with threaded, grooved, and flanged connections.

They can be configured to function as basic on/off, pressure reducing, or pressure sustaining valves and can operate manually or with electric AC/ DC, or DC latching solenoids.

Features

• Lower operating pressure.
• Minimal pressure loss.
• High maximum flow rate.
• No vibration or distortion.
• Simple 4 piece design for easy maintenance.
• 9-24V DC Latch. ( 24V AC/DC solenoid option available)

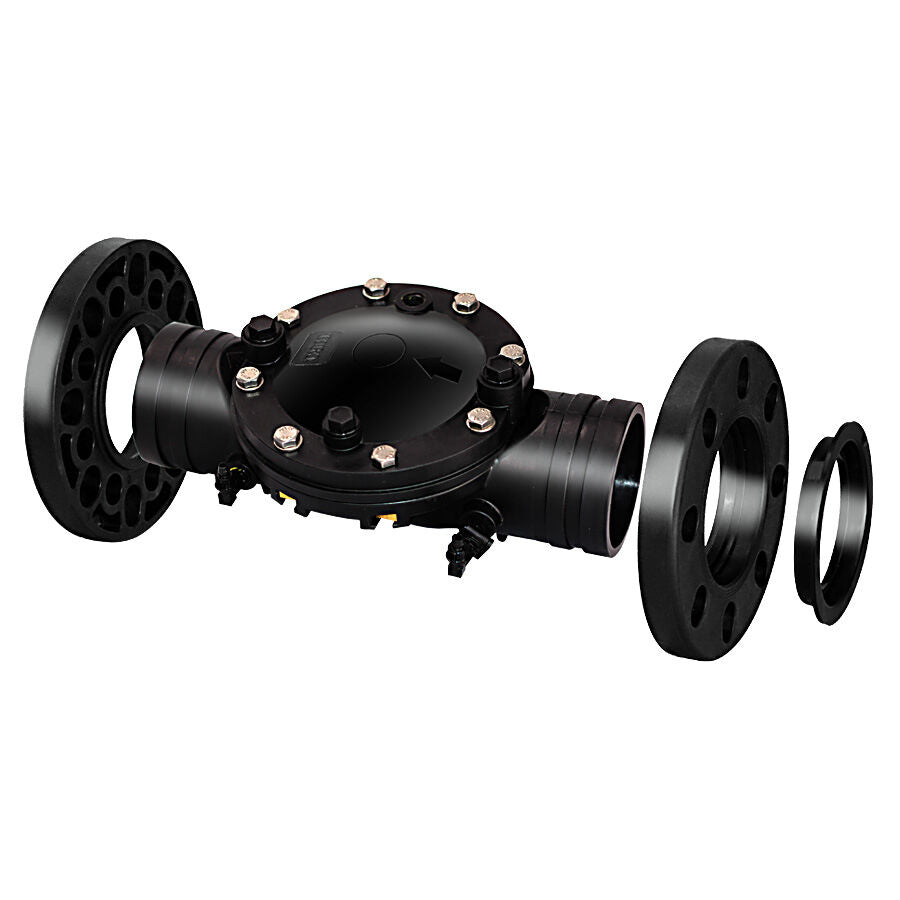

• Flange option for 3'' connection sizes and above.

New valve seat design creates an easier path for the water through the valve, reducing pressure loss and allowing the irrigation system to reach operational flow rates more efficiently.

Available Functions

• On/Off: Valve open/close, no pilot.


• Pressure Reducing: Valve maintains set downstream pressure, 3 way pilot.


• Pressure Sustaining: Valve maintains set upstream pressure, 3 way pilot.



Specifications

Materials

Body: Polyamide glass fibre (PGAF).
Diaphragm: Natural rubber.
Spring: Stainless steel.
Pilot Spring: : Stainless steel.

Pressure Loss Data

Provisions

1. Working Pressure Range

2. Operation

3. Accessories
