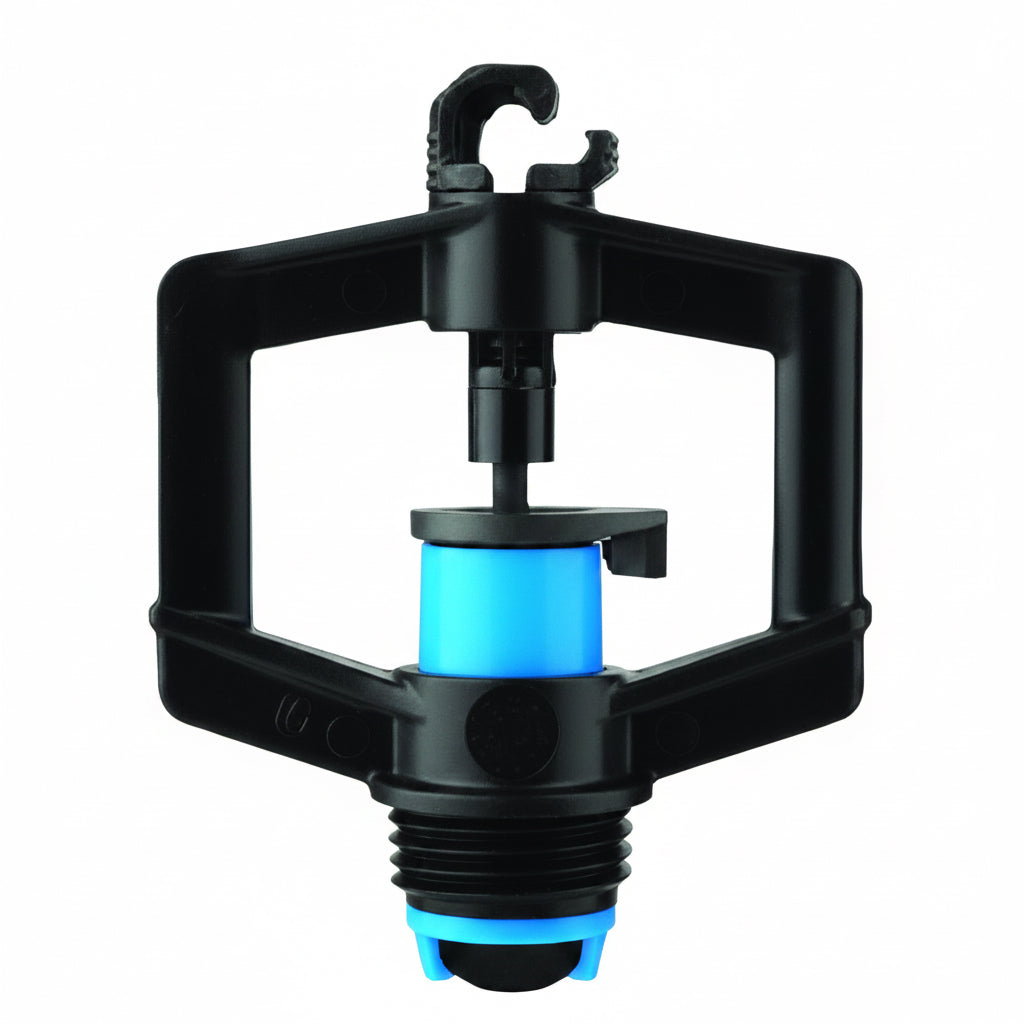

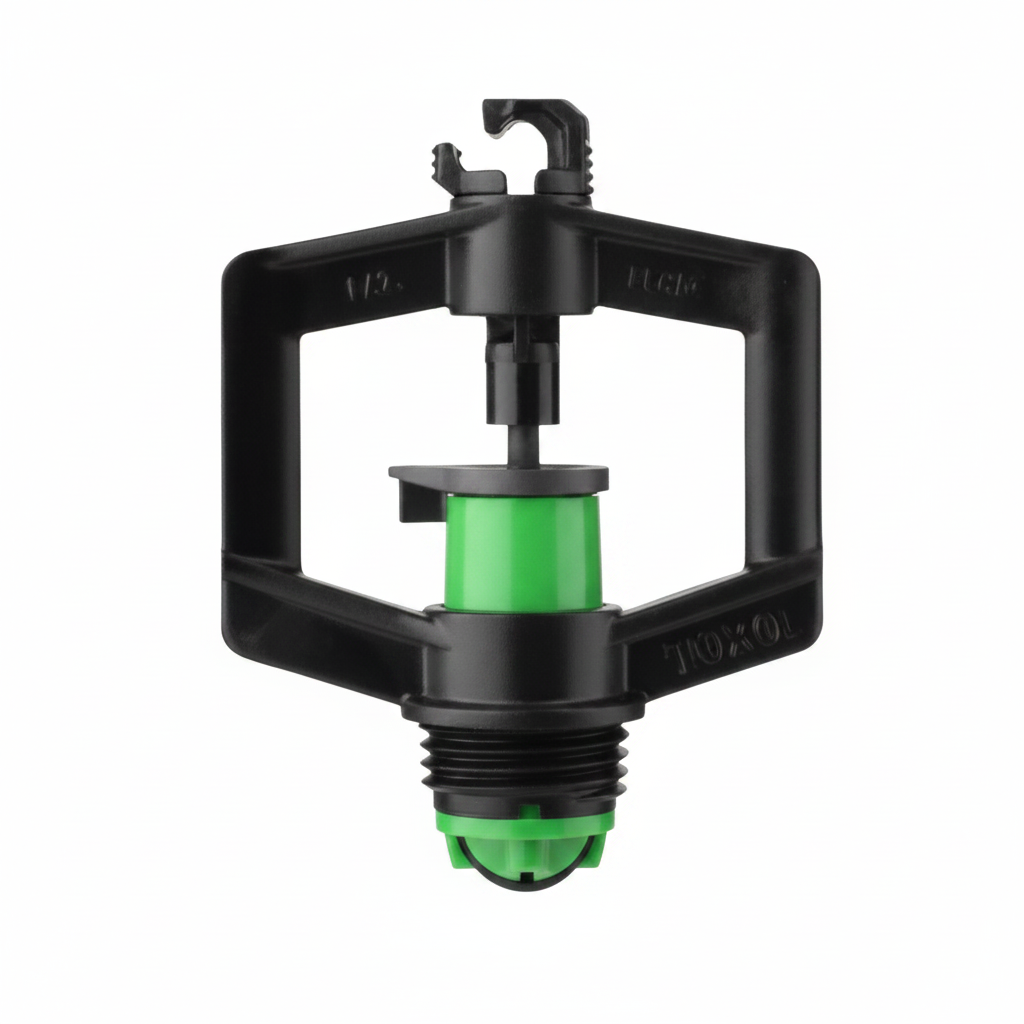

Toro Irrigation Pressure Compensating Micro Sprinkler Stake Assembly

Micro irrigation pressure compensating sprinkler specifically designed for orchards, vineyards, and nursery applications where undulating terrain and long lateral lengths are challenging. Its unique pressure compensating design provides uniform flows and diameters over a wide range of operating pressures.

Suitable for various applications, including under tree irrigation, overhead irrigation, vegetables, vineyard, orchards and greenhouse applications. This innovative micro sprinkler can also be used for overhead frost protection.

Features:

• Delivers a spray pattern that suits a wide range of crops.
• Wide diameter of throw from 16 ft to 31 ft, depending on sprinkler.
• The pressure compensating sprinkler provides uniform flow over a wide range of operating pressures, of 20 psi to 60 psi.
• Low angle of throw for maximizing under foliage irrigation.

• Snap fit bearing provides easy field inspection and maintenance.
• Improved distribution characteristics with large droplet size and less susceptible to wind.
• Anti-insect and dust proof spinner retracts to protect nozzle when not in operation.
• Optional break off deflector tab allows the sprinkler to be placed near a newly planted tree to concentrate water where the roots are developing.

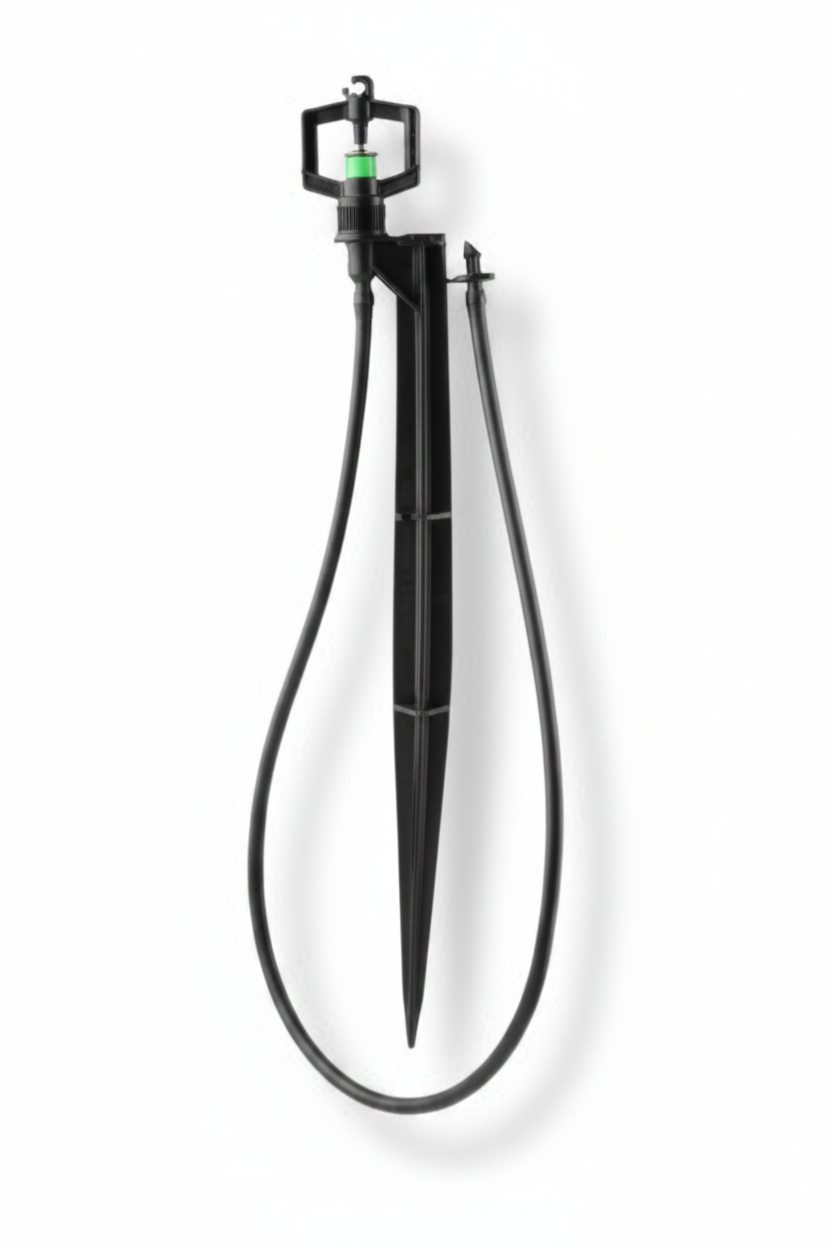

• Fully assembled models available with pre-installed tube and stake.

Specifications:

• Recommended operating pressure: 20 psi to 60 psi.

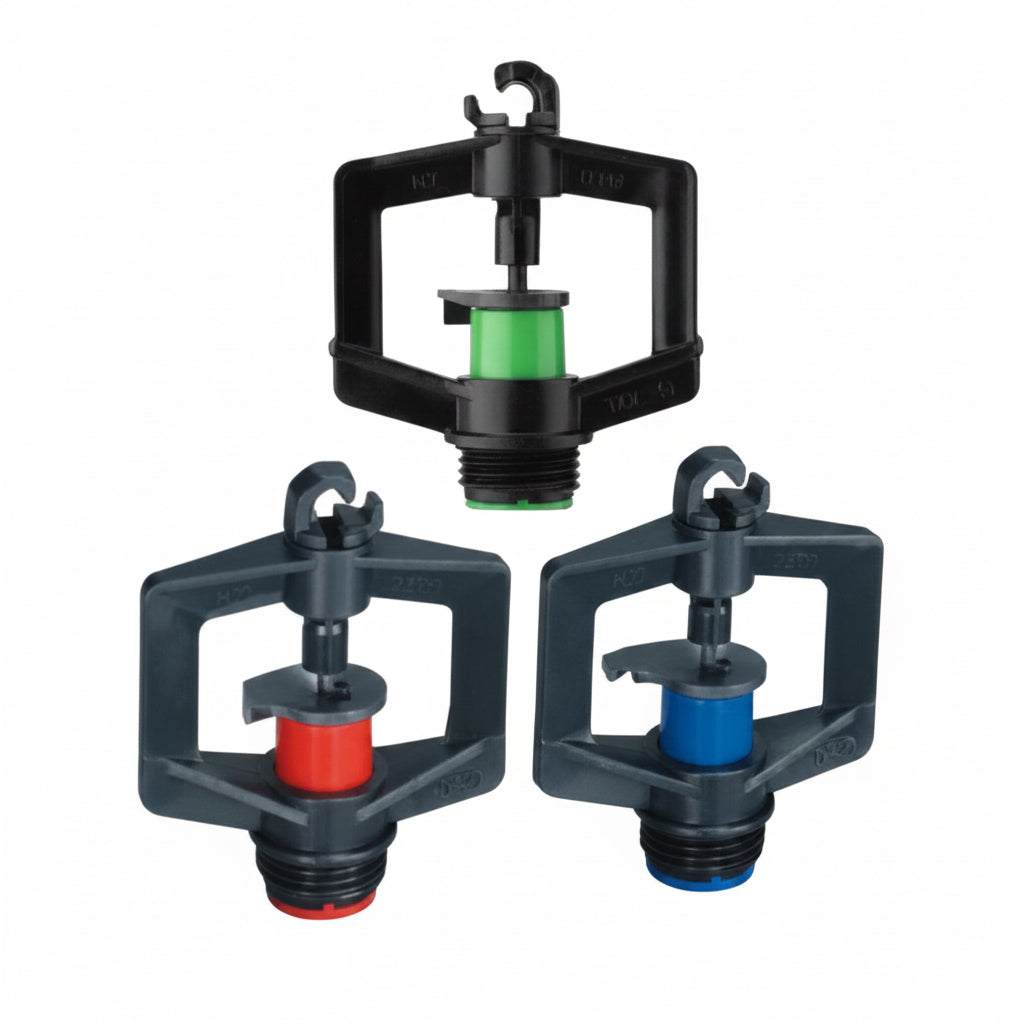

• Easy identification in eight color coded flow rates ranging from 9 gph to 40 gph.
  *Flow rates are expressed in gph at 40 psi / 2.75 bar.
• Use 4mm tube and stake to assemble.
• Inlet: 3/8" MPT (10 mm MBSP / NPT).
• Materials: Acetal frame, bearing and nozzle; nylon spinner; rubber diaphragm.

The Micro Sprinkler PC pressure compensating sprinkler is suitable for various applications, including under tree irrigation, overhead irrigation, vegetables, vineyard, orchards and greenhouse applications. This innovative micro sprinkler can also be used for overhead frost protection.
