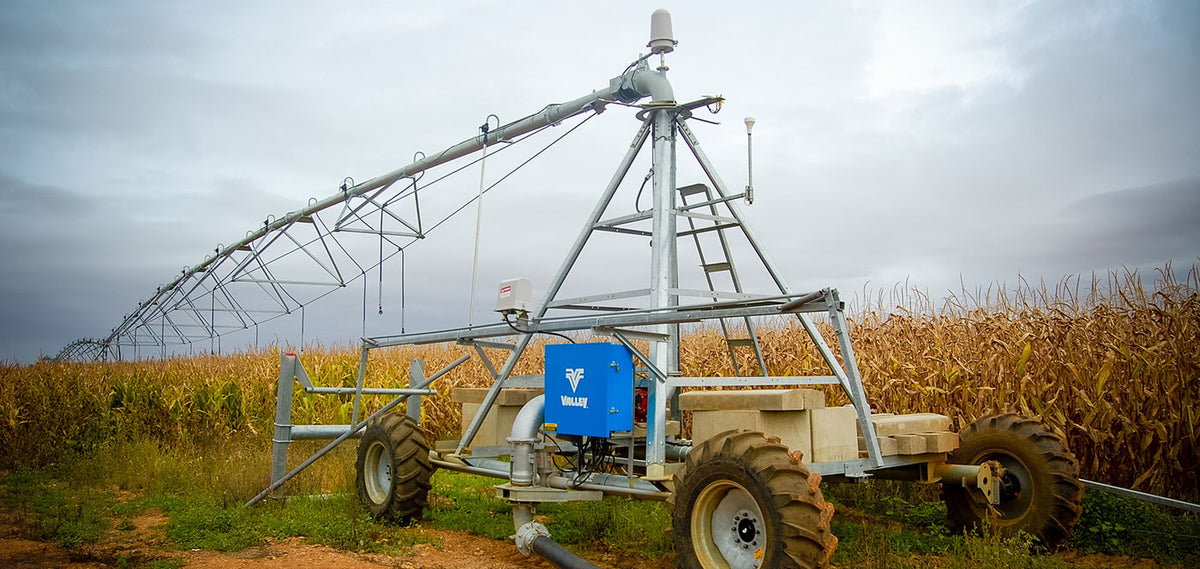

Valley Universal Linear
Valley Universal Linear
Easily switch from linear (lateral) to centre pivot mode.
The Valley® Universal linear is designed for swing-around farm irrigation applications. Unlike other swing-around linears, the Valley Universal can automatically switch between linear mode and center pivot mode, allowing you to increase your number of irrigated acres.
Benefits
- Maximize irrigated areas: A linear typically irrigates 92-98% of a square or rectangular field.
- Increase profitability: A linear can help reduce labor costs up to 50% compared to surface, side roll or hand-move irrigation.
- Water conservation: Linears conserve water by applying the right amount of water when and where it's needed.
- Various applications: Linear irrigation does more than just irrigate. It can also be used for chemigation, fertigation, germination and leaching.
- Valley quality: Each Valley linear comes standard with made-in-the-USA Valley gearboxes, providing you with the reliability, durability and quality you expect from the industry leader.
Specifications
| Maximum machine length | 1,300' |
| Span length options | All available |
| Pipe diameter options | 6 5/8" |
| Pipeline choices | Galvanized, PolySpan® |
| Hose option | Yes |
| Ditch/canal option |
Yes |
| End feed option |
Yes |
| Center feed option |
No |
| Swing-around option |
Yes |
| Towable option |
Yes |
| GPS guidance |
No |
| Below-ground cable guidance |
Yes |
| Furrow guidance |
Yes |
| Above-ground cable guidance | Yes |
| Modified alignment option |
Yes |
| Full floating alignment option | Yes |
| Hose connections (I.D.) | 4" & 6" (single) |
| Auto-reverse on the hose | Optional |
| Hose - HDPE | Yes |
| Power supply | Cord drag, genset |
| Cart-mounted pump | Yes |
| Pump options | Cornell® |
| Chemigation platform | Yes |
| Water inlet | Floating |
| Control panel options | AutoPilot Linear, ClassicPlus |
Hose Feed
- Easy swing-around capabilities
- 8-span maximum
- Furrow or below-ground guidance
Ditch Feed
- Side ditch option
- Above-ground or below-ground guidance
- No priming required
